SPECS

Cable

Category:

U/UTP CAT6-4P-PVC-CM

Test Standard:

ISO/IEC11801、TIA-568-C.2 、YD/T1019

Conductor

Material:

SOLID-Bare Copper

Copper content:

99.97%

Nom.O.D.(mm):

0.530

up    +0.005

down    -0.005

Insulation

Material:

HDPE

Diameter:

0.95±0.03mm

Sheath

Thickness:

0.55±0.05 mm

External O.D.:

5.8±0.4 mm

Surface:

Clean,Frap,Satiation

Material:

PVC(complies RoHS),CM

Color:

White

Surface Printing

Letter height:

3.0±0.3mm

Color:

Black

Print error & Space:

≤±0.5%,1m

General

Core Color:

1 White- Blue /Blue

2 White-Orange /Orange

3 White-Green /Green

4 White- Brown /Brown

Packing:

Wooden Tray & Carton

Carton dimension:

Per request

Packing length:

305±1.5m

Rip-cord:

Yes

Drain wire:

No

Sheath Physical Properties:

Before Aging Tensile Strength (Mpa) ≥13.5

Elongation(%) ≥150

Aging Period (℃×hrs) 100℃×24h×10d

After Aging Tensile Strength(Mpa) ≥12.5

Elongation(%) ≥125

Cold bend(-20±2℃×4h) 8×Cable O.D.,No visible cracks

Electrical Characteristics:

1.0-250.0MHz Impedance ((Ω) 100±15

1.0-250.0MHz Delay Skew (ns/100m) ≤45

DC Resistance (Ω/100m) max 9.38

DC Conductor Resistance Unbalance (%) max 5.0

Ambient temperature:

-20℃ - 75℃

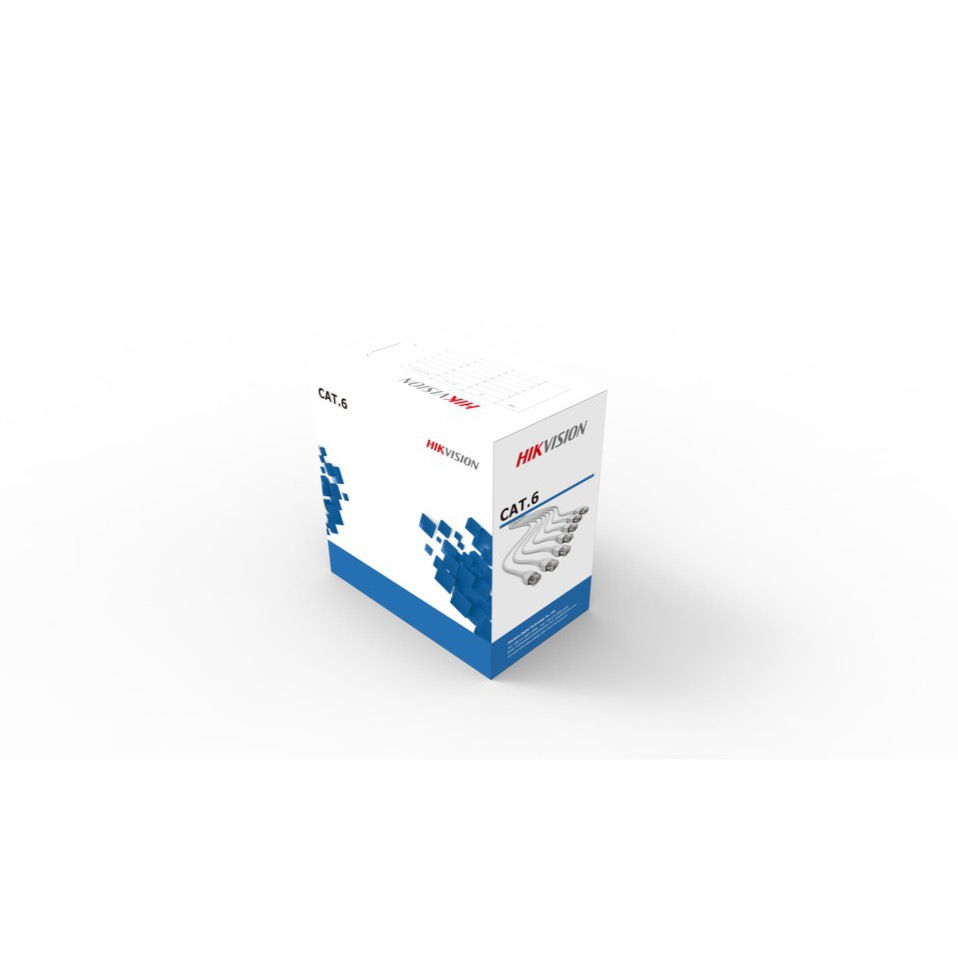

HIKVISION DS-1LN6-UE-W

Rp1,534,827Price
